    Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder


    Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder


    Product details of SETC servo tensioner ( for wire 0.03-0.22mm)


    SETC-BRD Series with cylinder and the tension pulley is under of front servo tensioner, Which the cylinder is mounted inside the enclosure, It have attenuation fuction. when not turned on the pressure, The tension can be adjusted by the knob and swing arm under the knob to control the tension.


    When a certain period in the winding, Thread and other processes require larger back tension, The pressure can be turned on. When the winding machine through a solenoid valve to control the switching valve, the swinging stopper will happen a certain angle in order to get two tension values and avoid disconnection.


    Specifications


    ModelTension springtension armReference wire diameter scopeTension scopeStandard configuration
    SETC-100-BRDS2SA20.03-0.06mm10-25Arm SA2/SA3, Spring S2/S3/S4
    S3SA30.05-0.09mm22-65
    S4SA30.08-0.14mm60-100
    SETC-200-BRDS2SA20.03-0.06mm10-25Arm SA2/SA3, Spring S2/S3/S4/S5
    S3SA30.05-0.09mm22-65
    S4SA30.08-0.14mm60-150
    S5SA30.14-0.22mm140-200
    SETC-300-BRDS2SA30.03-0.06mm10-25Arm SA3/SA4, Spring S2/S3/S4/S5
    S3SA30.05-0.09mm22-50
    S4SA40.08-0.14mm60-150
    S5SA40.14-0.22mm140-300

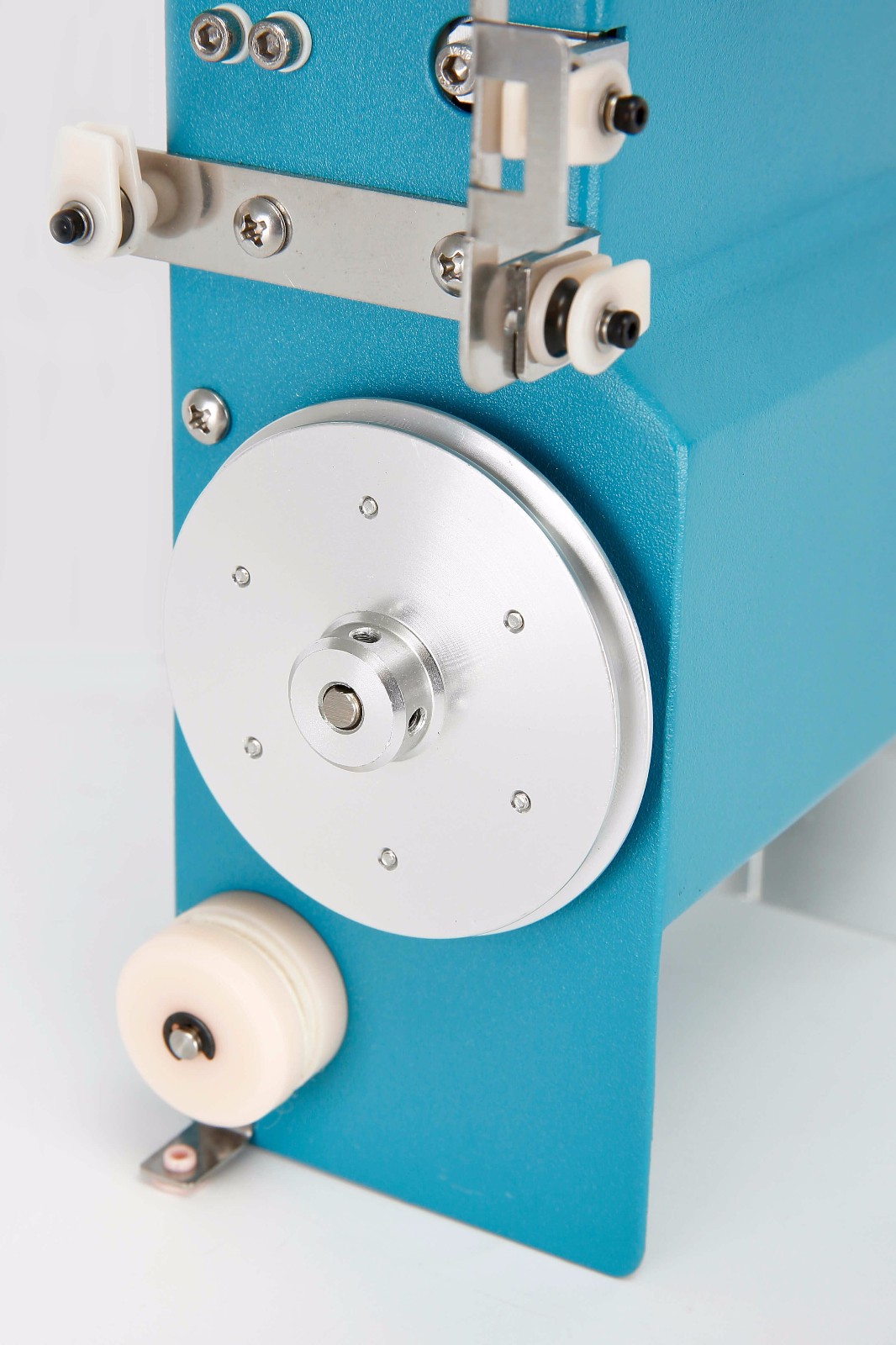

    Product image for reference:
